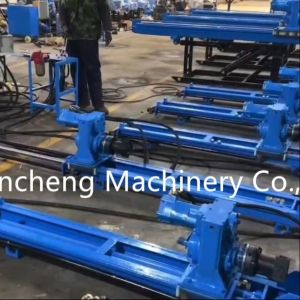

Split Type 60m Hydraulic Anchor Drilling Rig with 7.5KW Electric
Motor Power
Product Description:
The RCA-40E construction drill is a fully hydraulically operated
top-driven anchor drill with the power part being a motor and compressed air. The anchor
drill has large torque and strong drilling capacity, making it the
best choice for deep hole blasting. This drill has a low
maintenance rate and is light in weight. It is suitable for crawler
pneumatic drills such as slope support, quarries, water conservancy
projects, and highway and railway construction. It has mechanical
walking and is equipped with high base gears. It can cross uneven
terrain by itself, and can automatically load and unload cars,
saving lifting costs! Small size, fully automatic hydraulic system,
safe and reliable!
Features:
1. It has great drilling capability, wide range of application ,
rapid drilling speed and high drilling efficiency, as well as
powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power
head can protect drilling tools effectively. It can increase the
hole inclination angle range and drill elevation angle holes, while
setting the top drive power head and hole top plate toward the
opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used
for adjusting the height of mast front-end, which makes it
convenient to align with hole site.
4. Rig structure is separate group design, it offers good
disassembly , rapid and convenient mount and transport, better
working environment and lower labor strength as well as remote
control and operation.
5. Mast can be fixed on staging immediately without drill frame
with auxiliary parts (horizontal axle and buckles), which makes it
possible for greatly reducing rig weight and fast moving.
Technical Parameters:
| Product Name | 980 Nm Rated Output Torque Anchor Drilling Machine For Slope
Engineering Drilling |
| Product Category | Engineering Drilling Rig |
| Applications | Construction of big tonnage stress anchoring hole for water power
station, railway, highway, drainage hole and geologic calamity
fathering for landslide prevention and rock collapse, drilling
small size water well and high-pressure jet grouting hole |
| Drilling Diameter | 90-150 mm |
| Drilling Depth | 40-60 m |
| Power Head Output Speed | 0 ~80 rpm |
| Mast Slip Stroke | 500 mm |
| Electric Motor Power | 7.5 KW |
| Hydraulic System Rated Pressure | 14 Mpa |
| Rig Weight | 320 kg |
Applications:
1. Slope reinforcement of hydropower stations/railways/highways, as
well as landslides and dangerous rock anchoring projects in various
geological disasters, especially suitable for high slope rock
anchoring projects, used for anchoring holes;
2. It is also suitable for the construction of urban deep
foundation pit support, anti-floating anchors and foundation
grouting reinforcement holes, engineering holes, high-pressure jet
grouting piles, pipe shed support holes, etc. By slightly changing
its power head, it can be easily used for household wells, small
water conservancy projects, etc. The main machine is small in size
and easy to move, and can be used in small spaces and farmers and
small courtyards.
FAQ:
Q:Are you manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing
experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos
for machine install and operation.
Q: How long is your delivery time?
A: 15-20 days.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our
customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO
9001:2000.
