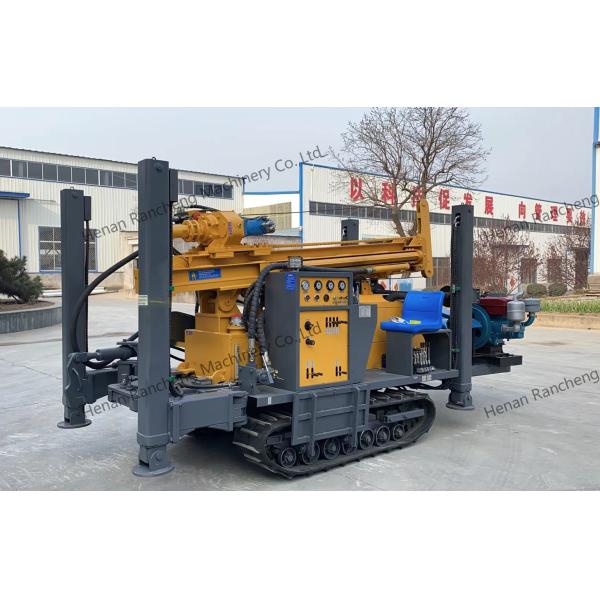

Hydraulic Rubber Crawler Borehole Water Well Drilling Rig Machine for 260m

Product Description

The RCF260C deep water well drilling rig is a product of our independent research and development. This new generation of down-the-hole (DTH) rigs is equipped with enhanced air power, significantly contributing to faster drilling rates.

Our water well drilling machines utilize the latest models and advanced hydro technology, resulting in low energy consumption, high rotary torque, and convenient hole deflection. They are primarily designed for various applications, including resource exploration, hydrology wells, civil water well projects, and agricultural irrigation.

Built from high-quality materials, our drilling rigs feature a stylish and compact design that enhances efficiency, reduces failure rates, and provides economic durability. Additionally, they offer high comprehensive cost performance. Our water drilling rigs have received positive feedback from the market, with many customers validating their effectiveness and performance.

Technical parameters

Product Advantages

1. Easy and Flexible Full Hydraulic Control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted in real time to meet the requirements of various drilling tool conditions and construction processes.

2. Top-Drive Slewing Propulsion Lift
The top-drive design simplifies connecting and disconnecting drill pipes, reducing auxiliary time and facilitating pipe drilling operations.

3. Multifunctional Drilling Capabilities
This rig supports a wide range of drilling processes, including down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and core drilling (under development). It can also be equipped with mud pumps, foam pumps, and generators based on user needs. Various hoists come as standard equipment.

4. High Efficiency
Thanks to its full hydraulic system and top-drive slewing propulsion lift, the rig is compatible with various drilling processes and tools. Its convenient and flexible controls, fast drilling speed, and reduced auxiliary time ensure high operational efficiency.

5. Low Operating Costs
The rig primarily utilizes down-the-hole (DTH) drilling technology, which offers high efficiency and lower cost per meter.

6. High Outriggers and Tracked Mobility

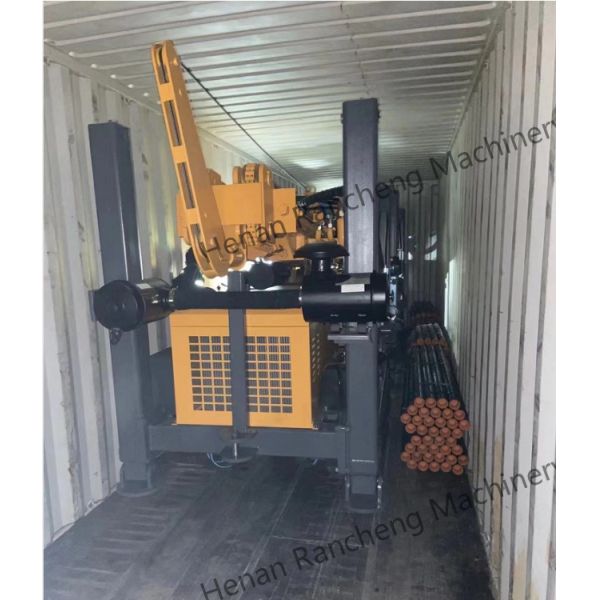

The high outriggers simplify loading and transportation, eliminating the need for a crane. The tracked design ensures smooth movement even in muddy fields.

7. Positive and Negative Axial Pressure Adjustment
Each impactor achieves optimal efficiency with matching axial pressure and speed. As the number of drill pipes increases during drilling, the axial pressure on the impactor also rises. The rig's adjustable positive and negative axial pressure valves ensure the impactor operates under optimal conditions, maximizing efficiency.

8. Rig Chassis Options
The rig can be mounted on either a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.

9. High-Quality Configuration
The rig features premium components and a renowned hydraulic system. Its main frame is constructed from high-strength, low-carbon alloy steel, enhancing overall durability and wear resistance.

10. Powerful Diesel Engine
The rig is powered by a 76KW Yunei engine, delivering reliable performance.

11. Strong Lifting Capacity
The composite tower design features a 3.4m long stroke and dual cylinders, providing a lifting force of up to 17 tons.

Application

This Rubber Crawler Water Well Drilling Rig is mainly used for various drilling projects, such as irrigation well drilling, domestic water well drilling, geothermal well drilling, hydrological well drilling, civil-use water well drilling, industrial well drilling, etc.


Henan Rancheng Machinery Co., Ltd., located in the historically renowned city of Zhengzhou, Henan Province, China, has been dedicated to the design and manufacturing of drilling rigs, mud pumps, air compressors, and drilling tools since its establishment in 2010. With deep industry experience and continuous innovative exploration, the company has gradually established a good reputation and influence in the industry.

Over the years, we have always adhered to the principle of quality first, committed to providing customers with high-quality, high-performance drilling equipment. Our series of drilling rigs not only have powerful drilling capabilities but also are easy to operate, adapting to various complex geological environments. As essential auxiliary equipment for drilling operations, mud pumps and air compressors have also received a great deal of attention to ensure their stable and efficient operation.

Our Agent In Foreign

We already have professional agents in Bulgaria, Russia, Romania, and Serbia. These experienced representatives not only offer accurate recommendations for equipment selection but also provide comprehensive technical support, including equipment installation and commissioning, routine maintenance, and troubleshooting.

With the support of local agents, you can enjoy timely, efficient communication and reliable after-sales service, ensuring a smooth and worry-free purchasing and usage experience.

We warmly welcome new partners from more countries to join us in delivering high-quality drilling equipment and professional services to customers worldwide.
